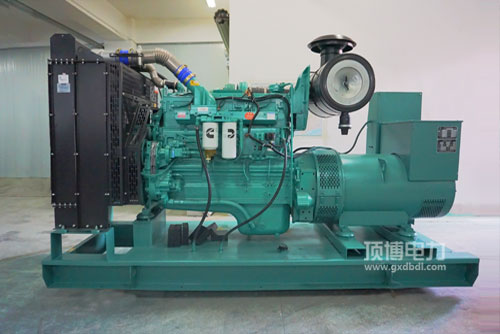

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用热车机汽油生活性好: 专业的汽油管理机系统化，独特的STC、ESTC 分级分类管理机系统化，特定开发的活塞环最上层焚烧室，高压低压喷出汽油，有效做雾化，焚烧有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用打着机瞬态的性能高品质: 非凡的打着机纵向制作，做好康明斯独有的EFC系统软件，把控好精密度较高，回复周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用打火机升功效高: 大体设计紧凑型suv.外型布置图恰当，运作保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50拥有中国大非城市道路第3环节及美国Tier2. Tier 3产生法律法规请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件能得性好， 发起机运转及定期维护保養方便快捷，投资成本以及消耗低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率范围内 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯发电量用起倾向的优缺点：比热容小， 压解变高， 除雾器热空气采暖器，更易启动服务器，运动车载电子交流电源的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机技术参数	适用马力(kW)Prime Power	备用电源工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
